Function Introduction
-
Back-End Recognition Mode
The user transmits the pictures or videos collected by the front-end device to the server integrated with the license plate recognition SDK for recognition
-
Authorization Method
The standard version supports ordinary 1-way authorization; the enhanced version supports 1, 2, 4, 8, 16, and 32-way authorization, and 6 license plates can be recognized at the same time in one picture, and supports Windows and Linux operating systems
-
All Types of License Plate Recognition
Support blue plate, yellow card, trailer license plate, agricultural license plate, Hong Kong and Macau entry and exit license plate, Macau and Taiwan license plate, civil aviation license plate, new energy license plate and other license plate recognition
-
Full Scene Recognition
Support full scene recognition such as day, night, strong sunlight, underground garage, etc.
-
Support Multi-Process Recognition
Can realize the deployment of license plate recognition service on one server, other servers in the LAN can use the license plate recognition function by accessing the authorization server, and process a large amount of data at the same time
-
Image/video Stream Recognition
Support image/video stream recognition, support 90°, 180° automatic rotation recognition
-
Ultra-Large Angle Recognition
Low license plate width requirements, 60-400 pixel width can be recognized
-
Flexible Cross-Platform Application
Support C#, DELPHI, VB, VC++, JAVA and other development languages to call routines, flexible cross-platform application
Product Superiority
High Recognition Accuracy
- High recognition accuracy - license plate recognition rate > 99.9%
Fast Recognition Speed
- The license plate recognition speed is less than 0.5s, and the delay time is within 100-200ms
Wide Range of Applications
- Wintone license plate recognition algorithm has a high market share, and has been successfully used in various industries such as intelligent transportation systems, entrance and exit management systems, and mobile police.
Application Scenarios
- Expressway
- Mobile pick-up service for 4S stores and special repair shops
- Bayonet monitoring
-

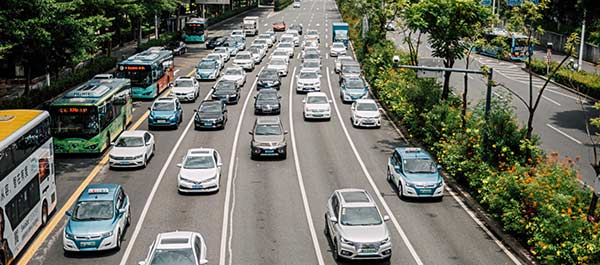

Expressway
The license plate recognition of Wintone Science & Technology Co., Ltd. is integrated into the management system of the entrance and exit of the expressway. The front-end equipment takes photos or videos of the license plate, and the background equipment recognizes them. The license plate information is automatically accurately entered into the background system, which can realize intelligent collection of high-speed fees, governance of red light running, speeding and other violations.
-
Mobile pick-up service for 4S stores and special repair shops
The license plate recognition is embedded in the CRM system of the mobile version of the 4S shop, and the service consultant scans and recognizes the license plate of the incoming car through the mobile phone camera, automatically recognizes the vehicle information, and retrieves from the CRM system, such as vehicle owner information, last maintenance time, insurance expiration time, etc. The file information of car owners and vehicles, through caring services, shortens the distance of trust with car owners, and creates more sustainable benefits for the company while winning praise from customers.
-
Bayonet monitoring
Behind the scientific management, efficient operation and high-quality services of smart highways, supervision is an indispensable part. License plate recognition plays a pivotal role in the capture of vehicles entering the lane, visual monitoring, and road condition monitoring. Wintone Science & technology is committed to In the research and development of core software such as license plate recognition, model recognition, vehicle feature recognition, parking space detection, etc., and according to the specific scene requirements of license plate recognition, we have launched Kuaihaotong license plate recognition cameras, Cheweitong license plate recognition cameras and other intelligent hardware equipment, with license plate recognition It has many advantages such as high rate, fast recognition speed, and adaptability to complex and severe weather, which helps to upgrade the bayonet monitoring service.
Case
-
- License plate recognition manages waste dump trucks at construction sites
-
- Complete vehicle logistics solutions
Product parameters
-
PC Version License Plate Recognition SDK
DetalisProduct Form Identification Type Pixel Width Feature Recognition Encryption lock, license plate recognition SDK development kit, development documentation SD, HD picture/video; can recognize 1ch, 2ch, 4ch, 8ch, 16ch, 32ch 60-400 pixel width License plate color, body color License Plate Recognition SDK Specifications (PC Platform) Product form Encryption lock, license plate recognition SDK development kit, development documentation Identification type Standard version: SD, HD pictures; 1 channel can be recognized; Supported calling routines C#、DELPHI、VB、VC++、JAVA Pixel width 60-400 pixel width Feature recognition license plate color and body color License plate type Blue plate, yellow plate, trailer license plate, new army license plate, police license plate, new armed police license plate, coach license plate, embassy license plate, agricultural license plate, personalized license plate, Hong Kong and Macao entry and exit license plate, Macau and Taiwan license plate, civil aviation license plate, consulate license plate, New energy license plates, etc. Operating environment Windows xp、Windows7、Windows8、Windows10、Windows server2008、Ubuntu、RedHat、Suse、Centos -
Mobile Terminal License Plate Recognition
DetalisOperating system Hardware configuration The camera Installer takes up Support Android 4.0 and above/ios7.0 and above arm cortex-a7 or above, 1g RAM supports auto focus, more than 2 million pixels 2MBytes Operating system Support Android 4.0 and above/ios7.0 and above Hardware configuration arm cortex-a7 or above, 1g RAM The camera supports auto focus, more than 2 million pixels Installer takes up 2MBytes -
Private Cloud License Plate Recognition
DetalisProduct form Encryption method Authorization method Supported license plate pixel width License plate recognition SDK development kit, development documentation Soft KEY, encryption lock Single authorization (process cannot be modified, validity period cannot be modified), full authorization (process and validity period can be modified) 60-400 Product form License plate recognition SDK development kit, development documentation Encryption method Soft KEY, encryption lock Authorization method Single authorization (process cannot be modified, validity period cannot be modified), full authorization (process and validity period can be modified) Supported license plate pixel width 60-400 Recognizable license plate types blue license plate, yellow license plate, trailer license plate, new army license plate, police license plate, new armed police license plate, coach license plate, embassy license plate, agricultural license plate, personalized license plate, Hong Kong and Macao entry and exit license plate, Hong Kong, Macao and Taiwan license plate, civil aviation license plate, Consulate license plate, new energy license plate, etc. Operating environment Windows xp、Windows7、Windows8、Windows10、Windows server2008、Ubuntu、RedHat、Suse、Centos Deployment Requirements The CodeMeter service needs to be deployed (the encryption scheme comes with a configuration service) -

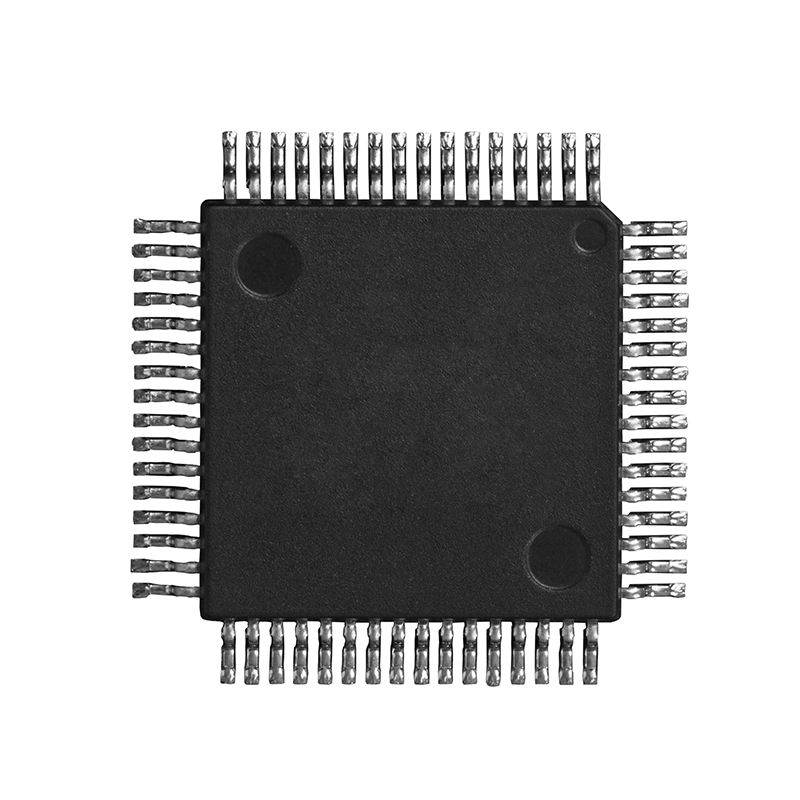

DSP Embedded Authorization
DetalisSupport identification type Application mode Authorization mode Support chip type high definition picture identification, bayonet video detection and identification Using static link library (lib) method, embedded in user application Authorization file, encryption chip, TF card DM8127, DM8148, DM8168, DM6437, DM648, DM6446, DM6467, DM3730, HiSilicon platform, etc. Support identification type high definition picture identification, bayonet video detection and identification Application mode Using static link library (lib) method, embedded in user application Authorization mode Authorization file, encryption chip, TF card Support chip type DM8127, DM8148, DM8168, DM6437, DM648, DM6446, DM6467, DM3730, HiSilicon platform, etc. License plate pixel width between 60-400 pixel width Identify license plate types blue license plate, yellow license plate, trailer license plate, new army license plate, police license plate, new armed police license plate, coach license plate, embassy license plate, agricultural license plate, personalized license plate, Hong Kong and Macao entry and exit license plate, Hong Kong, Macao and Taiwan license plate, civil aviation license plate, collar Pavilion license plate, new energy license plate, etc. Operating environment DSP core, ARM core (above A8), DSP+ARM core Application smart camera, video server
Online experience
PC Version License Plate Recognition SDK Distinguish
The recommended: size of the image is about 200KB, and the bit depth is more than 24Recommended resolution of scanned image: 300dpi, less than 3m.
